Visions
Shower Door, Base & Backwalls
PRODUCT SPECIFICATION
-
Items included: Visions Shower Door, Single Threshold Shower Base and QWALL-5 Shower Backwall Kit
- 56 - 60 in. W x 72 in. H
- 1/4 in. (6 mm) clear tempered glass
- Chrome or Brushed Nickel hardware finish
- Frameless glass design
- Width installation adjustability: 56 - 60 in.
- Out-of-plumb installation adjustability: Up to 1 in. per side
- Two sliding doors, flanked by two stationary panels
- Anodized aluminum wall profiles and guide rails
- Aluminum top and bottom guide rails may be shortened by cutting up to 4 in.
- Door walk-in: 22 - 26 in.
- Stationary panel: Two 12 3/4 in. panels
- Material: Tempered Glass, Aluminum
- Tempered glass ANSI certified
- Finished walls required for measurement and installation
- High quality scratch and stain resistant acrylic
- Slip-resistant textured floor for safe showering
- Integrated tile flange for easy installation and waterproofing
- Fiberglass reinforcement for durability
- cUPC certified
- Drain is not included
- Center, right, left drain configurations
- Color: White
- Assembly required
- Includes 2 glass corner shelves
- Attractive tile pattern
- Unique water tight connection of panels
- Durable acrylic/ABS construction
- Trim-to-Size sidewall design
- Must be trimmed during installation
- Specially designed to be installed over existing solid surface not directly against the studs
- Limited lifetime manufacturer warranty
- Shower Backwalls: Limited 1 (one) year manufacturer warranty
Visions Shower Door:

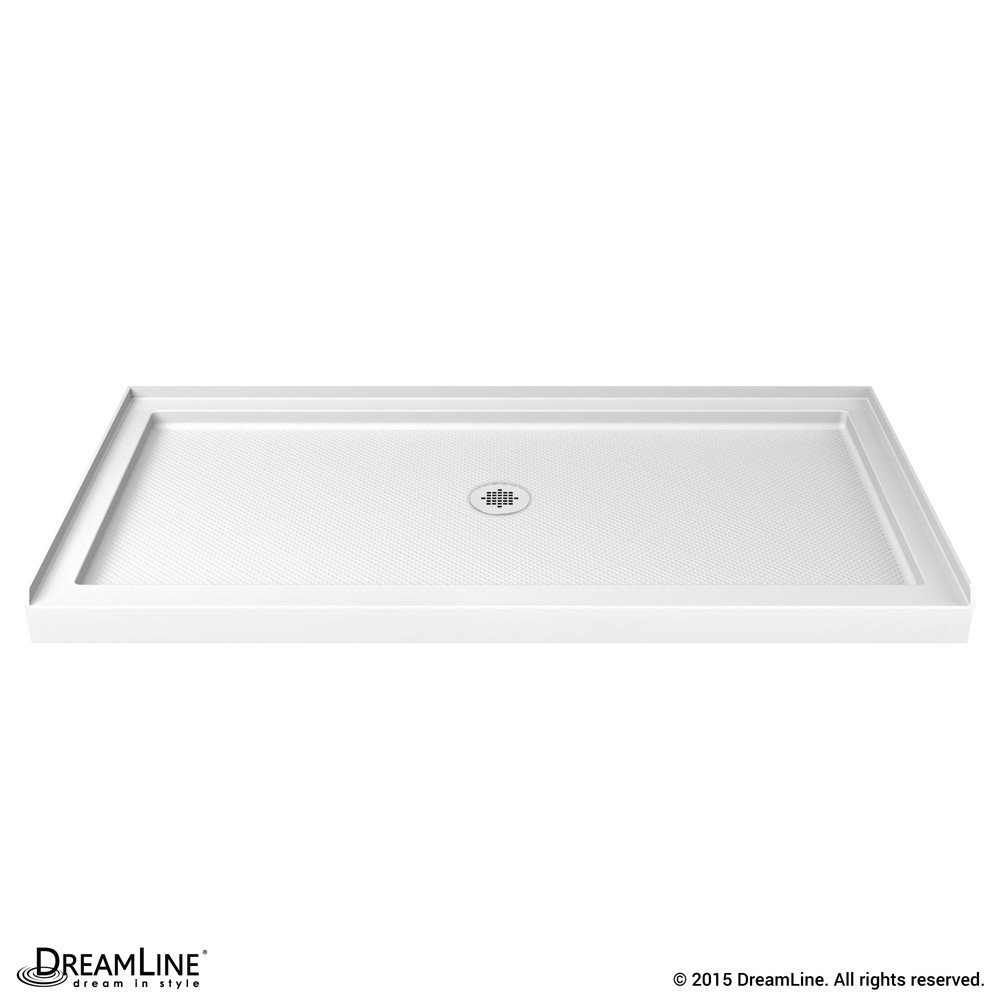

Single Threshold Shower Base:

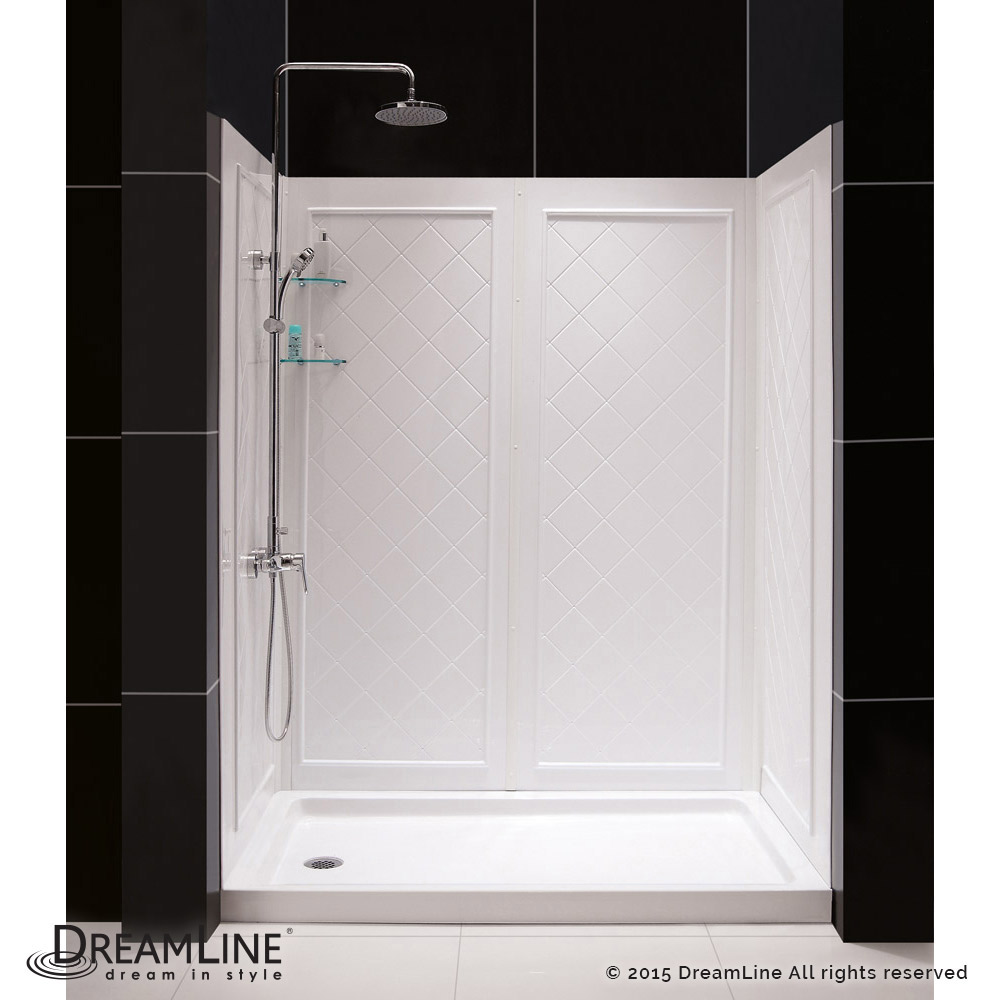

QWALL-5 Shower Backwall Kit:
Product Warranty:
This smart kit from DreamLine offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a VISIONS™ sliding shower door, universal shower backwall panels and a coordinating SlimLine™ shower base. The VISIONS shower door has two stationary glass panels and two sliding glass panels that open to create an ample center point of entry. The SlimLine shower base incorporates a low profile design for a sleek modern look, while the shower backwall panels have a tile pattern. Envision your shower space fresh and new with this complete shower kit from DreamLine.
for individual technical drawing| Kit Model Number |
Kit Size, in. D x W x H* |
Items Included | |||
| Base | Base Configuration | Backwalls | Door | ||
| DL-6112C | 30 x 60 x 76-3/4 | DLT-1130600 | Center Drain | SHBW-1462743-01 | SHDR-1160726 |
| DL-6112L | DLT-1130601 | Left Hand drain | |||
| DL-6112R | DLT-1130602 | Right Hand drain | |||
| DL-6113C | 32 x 60 x 76-3/4 | DLT-1132600 | Center Drain | ||

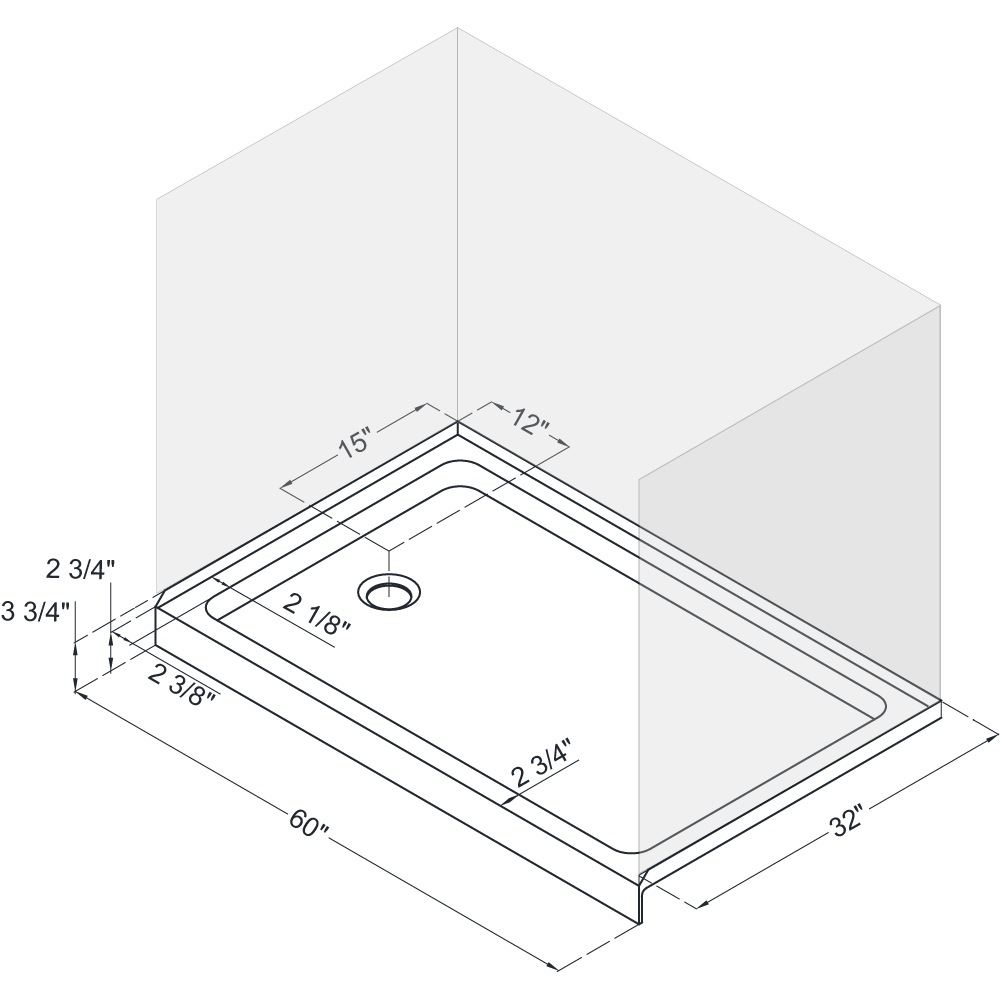

| DL-6113L | DLT-1132601 | Left Hand drain | |||
| DL-6113R | DLT-1132602 | Right Hand drain | |||

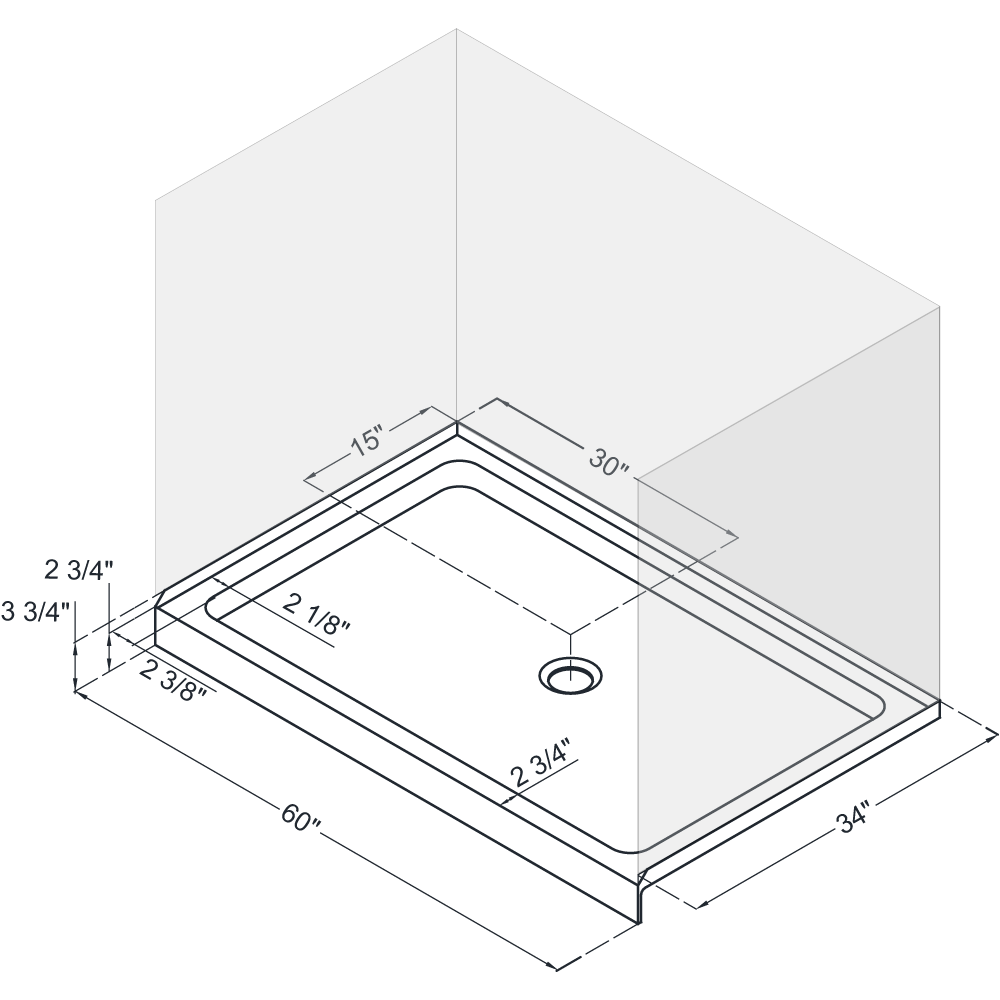

| DL-6114C | 34 x 60 x 76-3/4 | DLT-1134600 | Center Drain | ||
| DL-6114L | DLT-1134601 | Left Hand drain | |||
| DL-6114R | DLT-1134602 | Right Hand drain | |||
| DL-6115C | 36 x 60 x 76-3/4 | DLT-1136600 | Center Drain | ||
| DL-6115L | DLT-1136601 | Left Hand drain | |||
| DL-6115R | DLT-1136602 | Right Hand drain | |||
