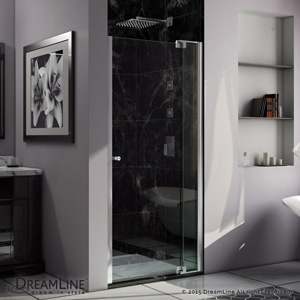

Allure Shower Door

Finish Options

The full range of Allure shower doors offer shower door solutions for openings from 30"-67". Each of the Allure doors is made of thick 3/8" tempered clear glass. The unique designed aluminum wall profiles and adjustable pivot hardware allows each door to be adjusted by up to 7", accommodating a variety of openings and small variations in side walls. Doors from 30"-43" are comprised of a small side stationary glass and main door. Doors from 43"-55" are comprised of a small side stationary glass, main door and a 12" stationary side panel with two integrated glass shelves. Larger doors from 54"-67" are also combined from a small side stationary glass, main door and a 24" stationary side panel with two integrated glass shelves. All Allure doors are reversible for right or left installation. Optional Acrylic/ABS shower back wall kits and single threshold DreamLine� Acrylic/ABS shower trays are also available in a variety of sizes to complete your project.

Product Specifications

3/8" tempered safety clear glass
Reversible for "Right" or "Left" hand installation
Unique adjustable pivot door hardware
Up to 7" width total adjustment on all doors (1" for out-of-plumb and additional 6" in pivot hardware)
Additional stationary side glass panel with 2 shelves required for doors larger than 43"
Anodized aluminum profiles
Visible fixtures in chrome finish (profiles and pivot hardware)
Optional single threshold fiberglass reinforced Acrylic/ABS trays
Optional Acrylic/ABS back wall kits

Model Number	Width Range	Matching Tray	Tray Size
SHDR-4230728-01	30" - 37"	SHTR-1136360	36" x 36"
SHDR-4236728-01	36" - 43"	-	-
SHDR-4242728-01	42" - 49"	SHTR-1136480	36" x 48"
SHDR-4248728-01	48" - 55"	-	-
SHDR-4254728-01	54" - 61"	SHTR-1130600 SHTR-1130601 SHTR-1130602 SHTR-1132600 SHTR-1134600 SHTR-1136600	30" x 60" 30" x 60" 30" x 60" 32" x 60" 34" x 60" 36" x 60"
SHDR-4260728-01	60" - 67"	-	-
