Elegance
Shower Door & Base Kit
PRODUCT SPECIFICATION
-
Items included: Elegance Shower Door and Single Threshold Shower Base
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 1 in. per side
- Frameless glass pivot shower door design
- Elegant pivot mechanism and anodized aluminum wall profiles
- Reversible for right or left door opening installation
- Material: Tempered Glass, Aluminum, Brass
- Tempered glass ANSI certified
- Color: White
- High quality scratch and stain resistant acrylic
- Slip-resistant textured floor for safe showering
- Integrated tile flange for easy installation and waterproofing
- Fiberglass reinforcement for durability
- cUPC certified
- Drain not included
- Plumbing codes vary by state; DreamLine is not responsible for code compliance
- Limited lifetime manufacturer warranty.
Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year
Elegance Shower Door:
Single Threshold Shower Base:
Product Warranty:

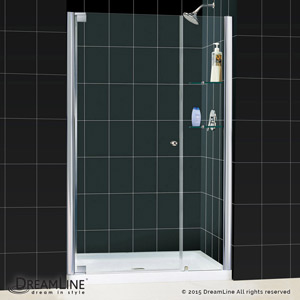

This DreamLine shower kit combines an ELEGANCE™ pivot shower door with a coordinating SlimLine™ shower base. The ELEGANCE pivot shower door delivers a fresh modern look with a frameless glass design, while adjustable installation features provide a perfect fit. A SlimLine shower base completes the transformation with a modern low profile design. Give your bathroom renovation a touch of elegance with this efficient bathroom renovation solution.
for individual technical drawing| Kit Model Number |
Kit Size, in. D x W x H* |
Items Included | ||
| Base | Base Configuration | Door | ||
| DL-6200C | 32 x 32 x 74-3/4 | DLT-1132320 | Center Drain | SHDR-4130720 |
| DL-6201C | 36 x 36 x 74-3/4 | DLT-1136360 | Center Drain | SHDR-4134720 |
| DL-6202C | 36 x 48 x 74-3/4 | DLT-1136480 | Center Drain | SHDR-4146720 |
| DL-6203C | 30 x 60 x 74-3/4 | DLT-1130600 | Center Drain | SHDR-4158720 |
| DL-6203L | DLT-1130601 | Left Hand Drain | ||
| DL-6203R | DLT-1130602 | Right Hand Drain | ||
| DL-6204C | 32 x 60 x 74-3/4 | DLT-1132600 | Center Drain | |
| DL-6204L | DLT-1132601 | Left Hand Drain | ||
| DL-6204R | DLT-1132602 | Right Hand Drain | ||
| DL-6205C | 34 x 60 x 74-3/4 | DLT-1134600 | Center Drain | |
| DL-6205L | DLT-1134601 | Left Hand Drain | ||
| DL-6205R | DLT-1134602 | Right Hand Drain | ||
| DL-6206C | 36 x 60 x 74-3/4 | DLT-1136600 | Center Drain | |
| DL-6206L | DLT-1136601 | Left Hand Drain | ||
| DL-6206R | DLT-1136602 | Right Hand Drain | ||
