PRODUCT SPECIFICATION

    Items included: Flex Shower Door and Single Threshold Shower Base

    Flex Shower Door:
  • 1/4 in. (6 mm) clear tempered glass
  • Chrome hardware finish
  • Frameless glass design

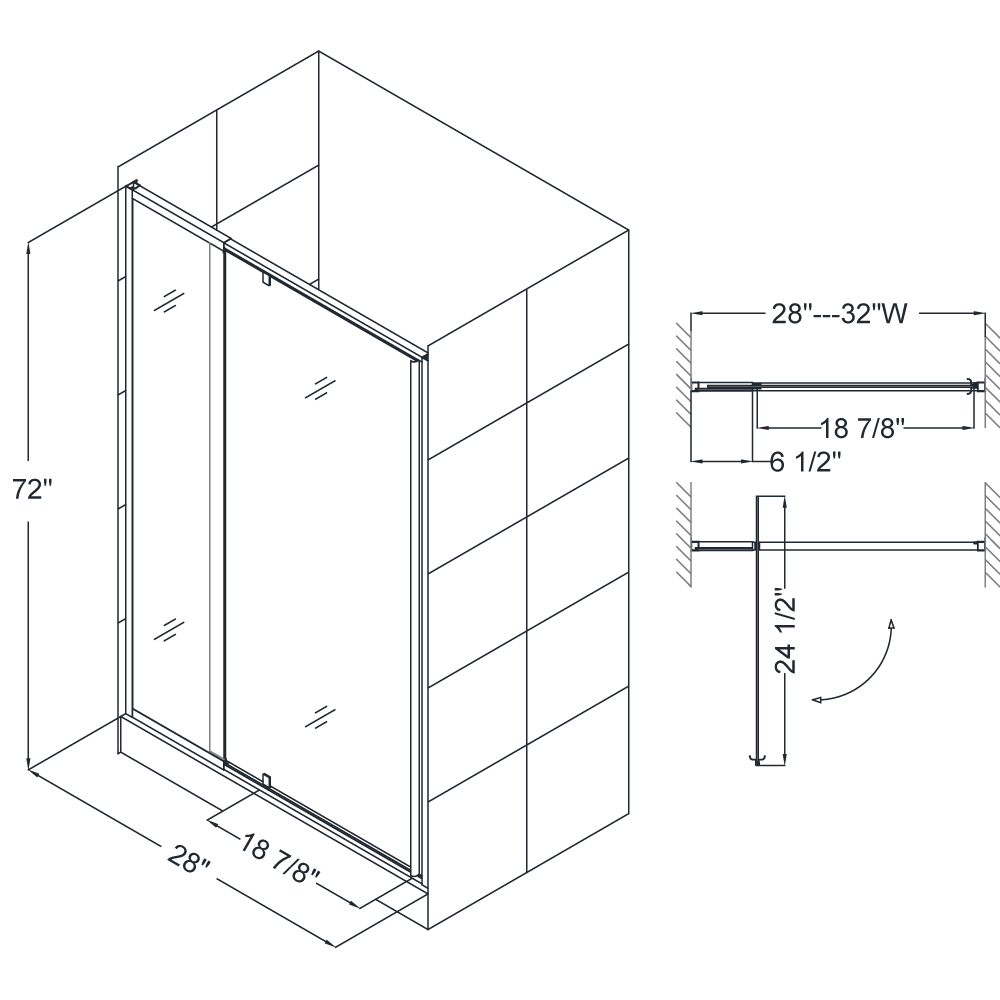

  • Up to 4 in. of adjustment. Wall Profiles: 1 in. width or out-of-plumb. Expandable Rails: 3 in. width
  • Frameless glass pivot shower door design
  • Magnetic strip for watertight closure
  • Reversible for right or left door opening installation
  • Material: Tempered Glass, Aluminum
  • Tempered glass ANSI certified


  • Single Threshold Shower Base:
  • Color: White
  • High quality scratch and stain resistant acrylic
  • Slip-resistant textured floor for safe showering
  • Integrated tile flange for easy installation and waterproofing
  • Fiberglass reinforcement for durability
  • cUPC certified
  • Drain not included
  • Plumbing codes vary by state; DreamLine is not responsible for code compliance


  • Product Warranty:
  • Limited lifetime manufacturer warranty

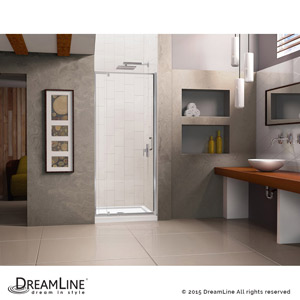

This beautiful and efficient DreamLine shower kit includes a FLEX™ pivot shower door and a coordinating SlimLine™ shower base. The FLEX is a fully adjustable shower door that can be customized to fit your shower space for an easy installation. The SlimLine shower base incorporates a low profile design for a sleek modern look. DreamLine shower kits offer a complete solution to transform a shower space.

Kit Model
Number
Kit Size, in.
D x W x H*
Items Included Glass
Type
Base Base Configuration Door
DL-6215C-01CL 32 x 32 x 74-3/4DLT-1132320Center DrainSHDR-22287200Clear
DL-6216C-01CL36 x 36 x 74-3/4 DLT-1136360Center DrainSHDR-22327200
DL-6207C
32 x 32 x 74-3/4 DLT-1132320 Center Drain SHDR-22287206 Clear
DL-6208C
36 x 36 x 74-3/4 DLT-1136360 Center Drain SHDR-22327206
