Shower Door Handle in Chrome finish
Shower Door Handle in Brushed Nickel finish
Shower Door Handle in Oil Rubbed Bronze finish
Unidoor

PRODUCT SPECIFICATION

  • Finished walls are required for accurate shower opening width measurement
  • Anodized aluminum wall profile allows a 1 in. width (horizontal) or out-of-plumb (vertical) adjustment within the model size
  • Frameless glass design

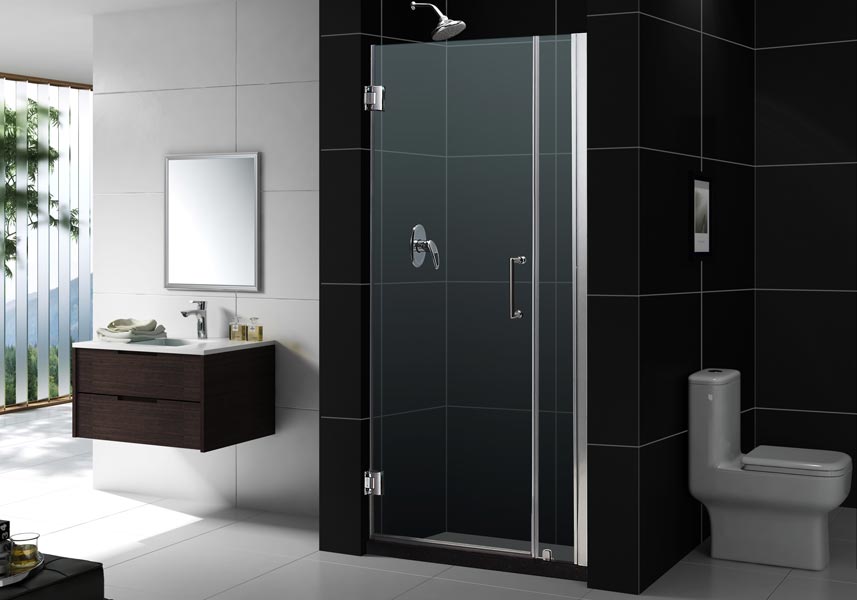

  • Model consists of single hinged door and one stationary inline panel
  • Reversible for a right or left door opening
  • 3/8 in.(10mm) thick ANSI certified clear tempered glass
  • Hardware available in chrome, brushed nickel or oil rubbed bronze finish

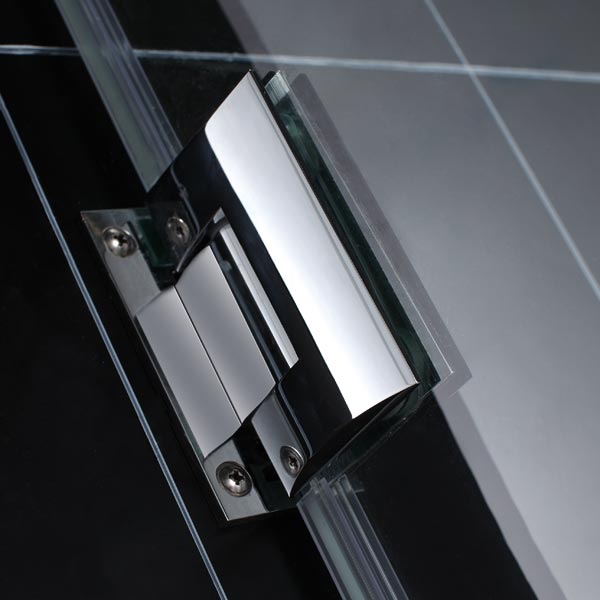

  • Solid brass self-closing hinges (with a 5 degree offset)
  • Choice of a (required) support bar or support shelves for model sizes 35 in. or wider
  • Wall studs or other reinforcement behind finished walls required for hinge installation
  • Professional installation recommended


  • Product Warranty:
  • Limited Lifetime Warranty

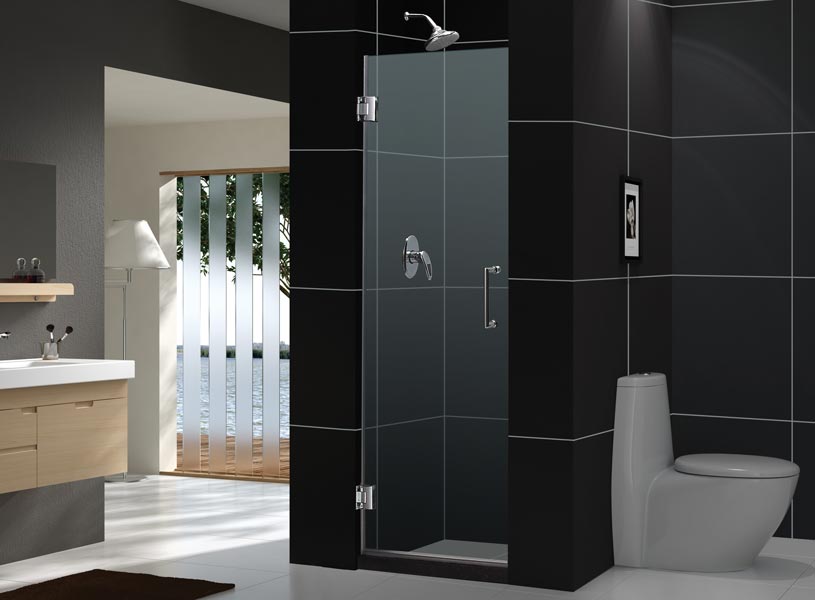

The UNIDOOR shower door from DreamLine® is perfectly designed to accommodate today‚Äôs trends. It has a classic frameless design with three hardware finish options helping enhance any bathroom style. The UNIDOOR combines premium 3/8 in. thick ANSI certified tempered glass with a sleek frameless design for the look of custom glass at an unparalleled value. The UNIDOOR shower door collection is extremely versatile with an incredible range of sizes to accommodate finished/tiled shower openings from 23 in. to 61 in. wide and an option of clear or frosted (band) privacy glass. With clean lines, modern accents and an upscale look, the UNIDOOR shower door offers a touch of timeless style to any bathroom space. DreamLine® has the ultimate solution for your shower project.

Click on door model number or for individual technical drawing

Unidoor shower door 23" - 60"

Configuration Model Number Configuration Model Number Opening Range Door Width Panel Width
--- ---
No stationary panel
No shelves
No support arm
SHDR-20237210F 23" 23" -
SHDR-20247210F 24" 24" -
SHDR-20257210F 25" 25" -
SHDR-20267210F 26" 26" -
SHDR-20277210F 27" 27" -
SHDR-20287210F 28" 28" -
SHDR-20297210F 29" 29" -
SHDR-20307210F 30" 30" -
--- ---
 6" stationary panel
No shelves
No support arm
SHDR-20297210 29-30" 23" 6"
SHDR-20307210 30-31" 24" 6"
SHDR-20317210 31-32" 25" 6"
SHDR-20327210 32-33" 26" 6"
SHDR-20337210 33-34" 27" 6"
SHDR-20347210 34-35" 28" 6"
SHDR-20357210 35-36" 29" 6"
SHDR-20367210 36-37" 30" 6"

12" stationary panel w/ Support Arm
SHDR-20357210C
12" stationary panel  w/ Shelves
SHDR-20357210CS 35-36" 23" 12"
SHDR-20367210C SHDR-20367210CS 36-37" 24" 12"
SHDR-20377210 SHDR-20377210S 37-38" 25" 12"
SHDR-20387210 SHDR-20387210S 38-39" 26" 12"
SHDR-20397210 SHDR-20397210S 39-40" 27" 12"
SHDR-20407210 SHDR-20407210S 40-41" 28" 12"
SHDR-20417210 SHDR-20417210S 41-42" 29" 12"
SHDR-20427210 SHDR-20427210S 42-43" 30" 12"

18" stationary panel w/ Support Arm
SHDR-20417210C
18" stationary panel w/ Shelves
SHDR-20417210CS 41"-42" 23" 18"
SHDR-20427210C SHDR-20427210CS 42"-43" 24" 18"
SHDR-20437210 SHDR-20437210S 43"-44" 25" 18"
SHDR-20447210 SHDR-20447210S 44"-45" 26" 18"
SHDR-20457210 SHDR-20457210S 45"-46" 27" 18"
SHDR-20467210 SHDR-20467210S 46"-47" 28" 18"
SHDR-20477210 SHDR-20477210S 47"-48" 29" 18"
SHDR-20487210 SHDR-20487210S 48"-49" 30" 18"

 24"stationary panel w/ Support Arm
SHDR-20477210C
 24" stationary panel w/ Shelves
SHDR-20477210CS 47"-48" 23" 24"
SHDR-20487210C SHDR-20487210CS 48"-49" 24" 24"
SHDR-20497210 SHDR-20497210S 49"-50" 25" 24"
SHDR-20507210 SHDR-20507210S 50"-51" 26" 24"
SHDR-20517210 SHDR-20517210S 51"-52" 27" 24"
SHDR-20527210 SHDR-20527210S 52"-53" 28" 24"
SHDR-20537210 SHDR-20537210S 53"-54" 29" 24"
SHDR-20547210 SHDR-20547210S 54"-55" 30" 24"

30" stationary panel  w/ Support Arm
SHDR-20537210C
30" stationary panel w/Shelves
SHDR-20537210CS 53"-54" 23" 30"
SHDR-20547210C SHDR-20547210CS 54"-55" 24" 30"
SHDR-20557210 SHDR-20557210S 55"-56" 25" 30"
SHDR-20567210 SHDR-20567210S 56"-57" 26" 30"
SHDR-20577210 SHDR-20577210S 57"-58" 27" 30"
SHDR-20587210 SHDR-20587210S 58"-59" 28" 30"
SHDR-20597210 SHDR-20597210S 59"-60" 29" 30"
SHDR-20607210 SHDR-20607210S 60"-61" 30" 30"


Matching Base Selection Guide

Model Number Opening Range Door Width Panel Width Suggested Base
SHDR-20307210 30"-31" 24" 6" DLT-1132320
SHDR-20347210 34"-35" 28" 6" DLT-1136360
SHDR-20467210
SHDR-20467210S
46"-47" 28" 18" DLT-1136480
SHDR-20587210S 58"-59" 28" 30" Any Single Threshold Shower Base 60" Width
