PrismLux
Hinged Shower Enclosure
PRODUCT SPECIFICATION
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
- Frameless glass design
- No out-of-plumb installation adjustability

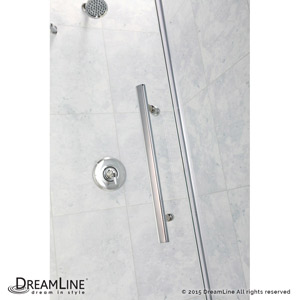

- Solid brass self-closing hinges
- Wall mount brackets and wall-attached stainless steel support bars
- Reversible for right or left door opening installation
- Finished walls required for measurement and installation
- Material: Tempered Glass, Aluminum
- Tempered glass ANSI certified
- Optional SlimLine shower base sold separately
- Limited lifetime manufacturer warranty
Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year
Product Warranty:
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine Slimline Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately

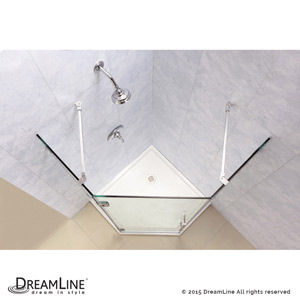

The PrismLux shower enclosure incorporates a unique corner installation design to save space while creating a beautiful focal point. The modern enclosure combines the rich look of impressive 3/8 in. thick tempered glass and the clean lines of a completely frameless design for an upscale custom look. Add a DreamLine shower base and shower backwalls and for an efficient and cost effective way to dramatically transform any shower space.
| Model Number | Glass Thickness | Size | Suggested Base |
| SHEN-2234340 | 3/8" | 34-5/16" x 34-5/16" x 72" | DLT-2036360 |
| SHEN-2236360 | 3/8" | 36-5/16" x 36-5/16" x 72" | DLT-2038380 |
| SHEN-2238380 | 3/8" | 38" x 38" x 72" | DLT-2040400 |
| SHEN-2240400 | 3/8" | 40-3/8" x 40-3/8" x 72" | DLT-2042420 |
