Quatra
Pivot Shower Enclosure
PRODUCT SPECIFICATION
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome or Brushed Nickel hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 3/8 in. per side
- Pivot door with full length magnetic door latch
- Anodized aluminum wall profiles
- Finished walls required for measurement and installation
- Reversible for right or left door opening installation
- Material: Tempered Glass, Brass
- Optional SlimLine shower base sold separately
- Tempered glass ANSI certified
- Plumbing codes vary by state; DreamLine is not responsible for code compliance
- Limited lifetime manufacturer warranty
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
Product Warranty:
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine Slimline Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately

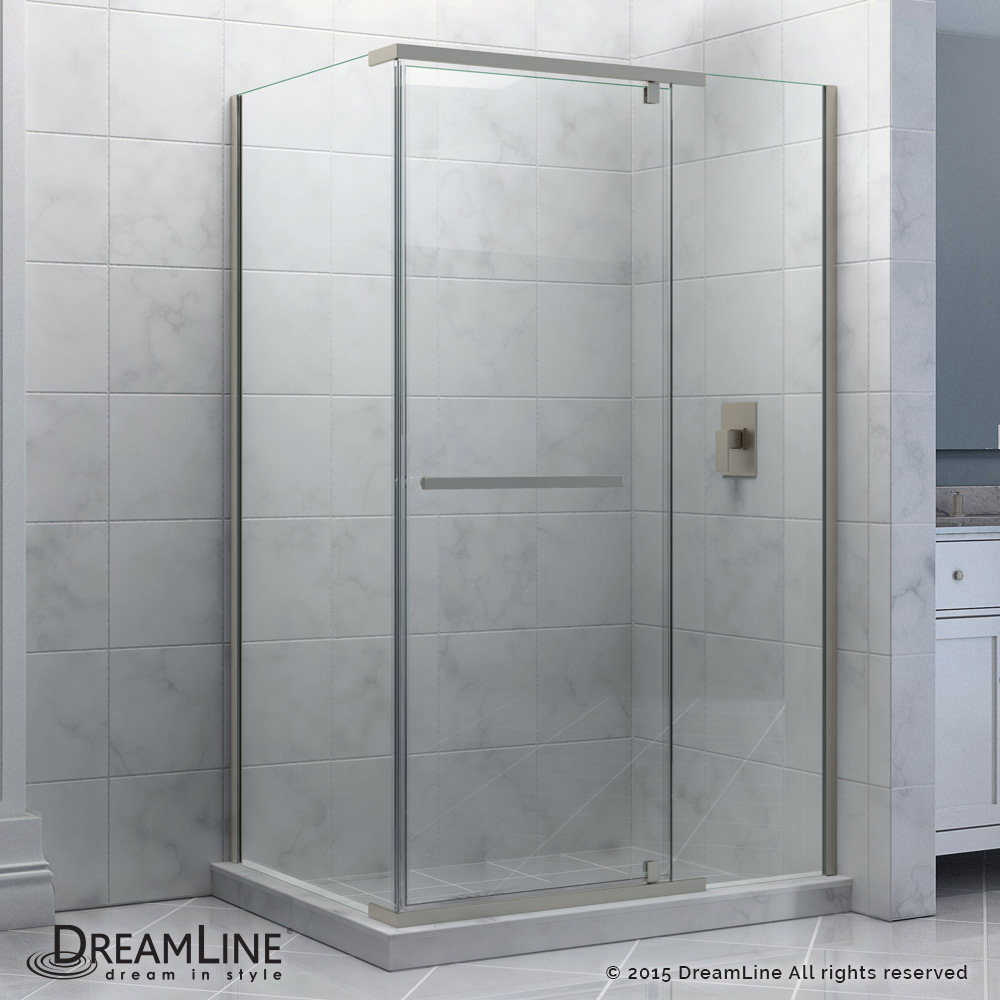

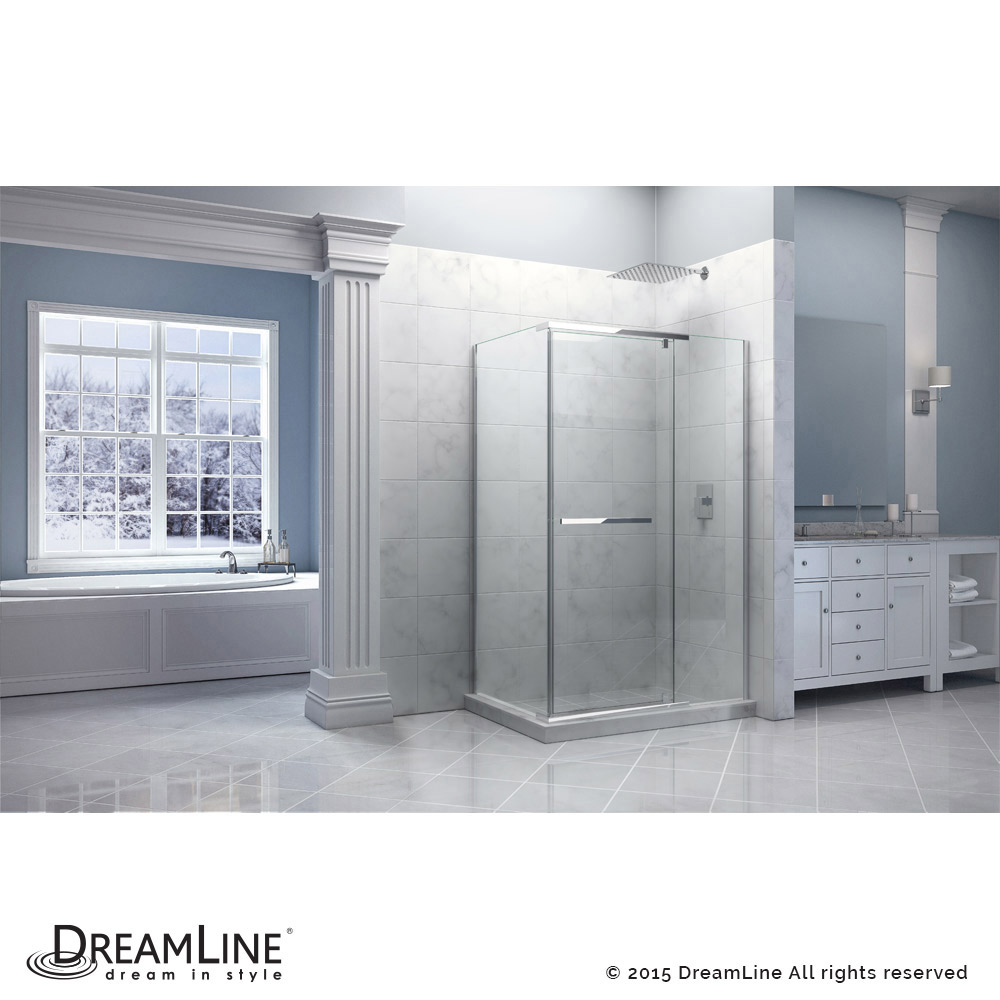

The Quatra shower enclosure offers a flowing frameless glass design for a sleek and modern look. The sophisticated pivot hardware delivers an effortless operation, while upper and lower stainless steel brackets prevent water leaks and secure the structure. Install the Quatra on a custom tiled floor or an optional DreamLine acrylic shower base to dramatically transform your bathroom.
| Model Number | Glass Thickness | Size, in. D x W x H | Suggested Base |
| SHEN-1132460 | 3/8" | 32 5/16 x 46 5/16 x 72 | DLT-1034481 (Left-hand Drain) DLT-1034482 (Right-hand Drain) |
| SHEN-1134340 | 3/8" | 34 5/16 x 34 5/16 x 72 | DLT-1036360 |
| SHEN-1134460 | 3/8" | 34 5/16 x 46 5/16 x 72 | DLT-1036481 (Left-hand Drain) DLT-1036482 (Right-hand Drain) |
| SHEN-1134581 | 3/8" | 34-5/16 x 58-3/8 x 72 | DLT-1036601 DLT-1036602 |
