Elegance
Pivot Shower Enclosure
PRODUCT SPECIFICATION
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 1 in. per side
- Frameless glass pivot shower enclosure design

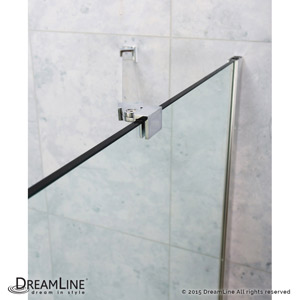

- Elegant solid brass pivot mechanism and anodized aluminum wall profiles
- Reversible for right or left door opening installation
- Material: Tempered Glass, Aluminum, Brass
- Tempered glass ANSI certified
- Optional backwalls and SlimLine shower base available
- Limited lifetime manufacturer warranty
Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year - Finished walls required for measurement and installation
- Plumbing codes vary by state; DreamLine is not responsible for code compliance
Product Warranty:
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine Slimline Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately
The Elegance shower enclosure combines clean minimal styling with exceptional quality. Opulent 3/8 in. thick tempered glass and a fluid frameless design create a prefect mix of strength and beauty. The corner installation maximizes space and becomes the heart of a bathroom design, while minimal hardware generates an open and airy appeal.
| Configuration w/ Support Arm | Model Number | Configuration with Shelves | Model Number | Dimensions D X W x H |
 | SHEN-4130300 |  | SHEN-4130301 | 30" x 30" x 72" |
| SHEN-4134300 | SHEN-4134301 | 34" x 30" x 72" | ||
| SHEN-4130320 | SHEN-4130321 | 30" x 32" x 72" | ||
| SHEN-4134320 | SHEN-4134321 | 34" x 32" x 72" | ||
| SHEN-4130340 | SHEN-4130341 | 30" x 34" x 72" | ||
| SHEN-4134340 | SHEN-4134341 | 34" x 34" x 72" |
| Shower Enclosure Model Number | Dimensions D X W x H | Corner Drain |
| SHEN-4130301 | 32" x 32" x 2-3/4" | DLT-1032320 |
| SHEN-4130300 | ||
| SHEN-4134341 | 36" x 36" x 2-3/4" | DLT-1036360 |
| SHEN-4134340 |
