Enigma-Z
Sliding Shower Enclosure
PRODUCT SPECIFICATION
- Finished walls are required for accurate shower opening width measurement

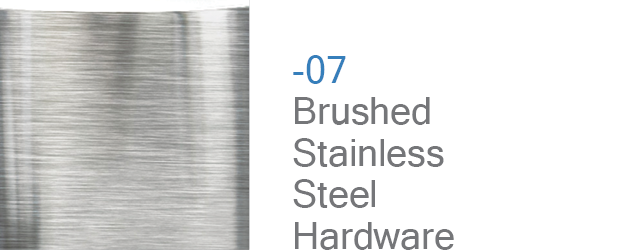

- Stainless steel hardware available in brushed or polished finish
- Frameless glass design

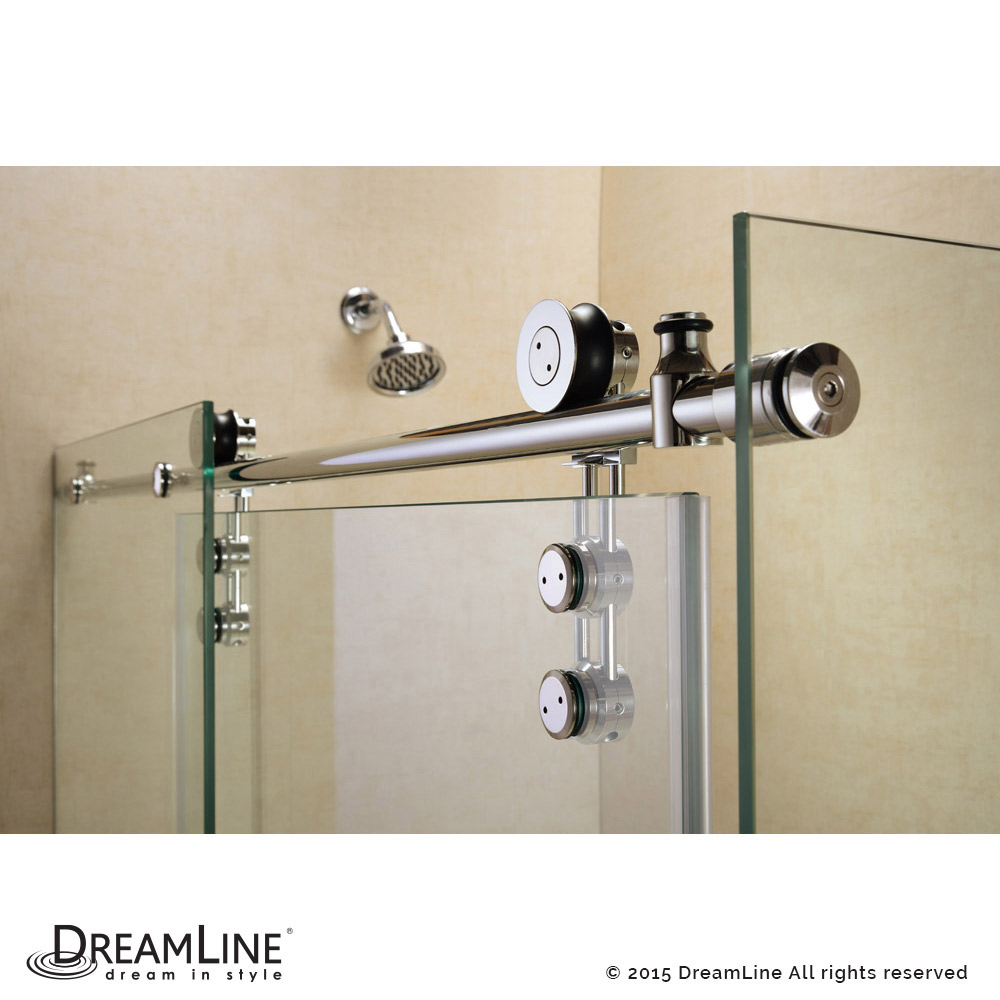

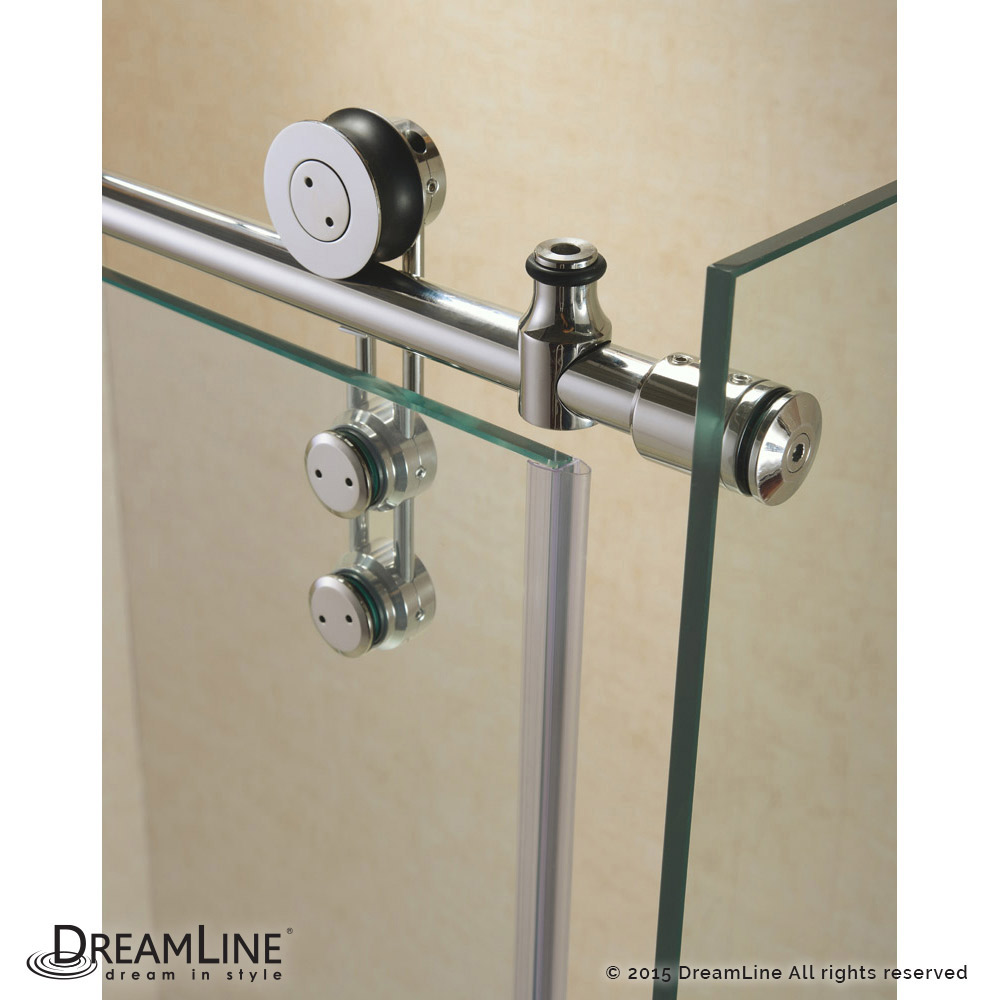

- Effortless sliding operation with large wheel assembly on a stainless steel track (bar)
- Track (bar) may be shortened up to 4 in. for width (horizontal) adjustment
- No out of plumb (vertical) adjustment
- Reversible for a right or left door opening installation
- Premium 3/8 in. (10mm) thick ANSI certified clear tempered glass
- DreamLine exclusive ClearMax protective anti-lime scale coating
- Anti-splash threshold to prevent water spills (requires minimum threshold depth of 2 3/8 in.)
- Optional SlimLine shower base available for some models (sold separately)
- Wall studs or other reinforcement behind finished walls required for installation
- Professional installation required
- Limited Lifetime Manufacturer Warranty
Warranty:
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine SlimLine Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately

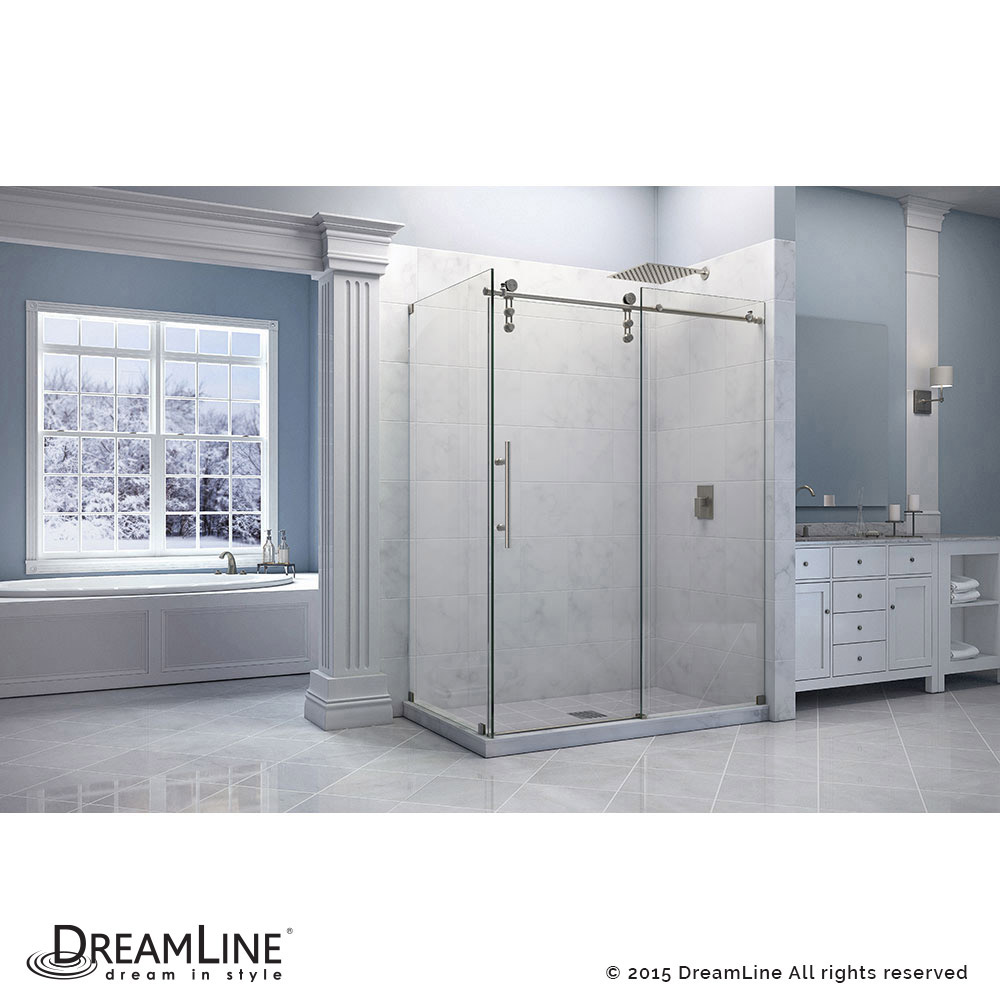

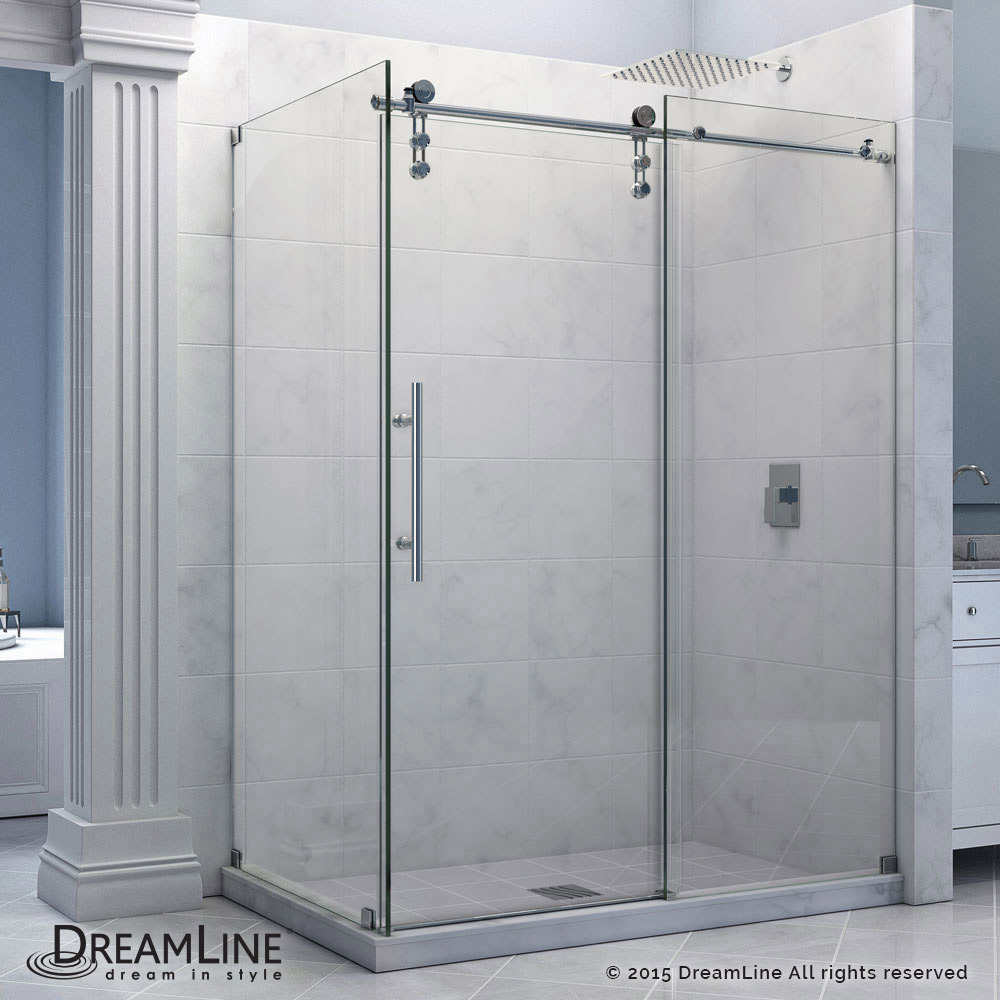

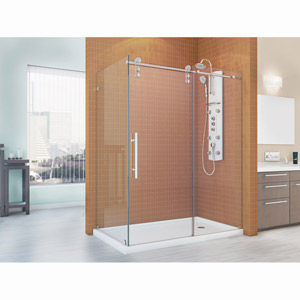

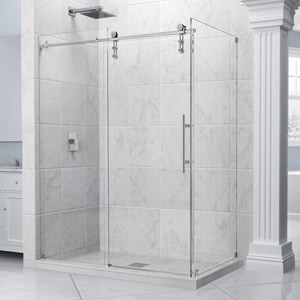

The ENIGMA-Z shower enclosure from DreamLine® is the epitome of style, innovation and quality. The Enigma-Z shower enclosure stuns with a sophisticated fully frameless design that rivals custom glass at an amazing value. The ENIGMA-Z shower enclosure combines premium 3/8 in. thick ANSI certified clear tempered glass with striking stainless steel hardware delivering a perfect mix of exceptional quality and cool urban style. The impressive glass is treated with DreamLine® exclusive ClearMax protective anti-lime scale coating for superior protection and easy maintenance. Add an element of style to your bathroom with the ENIGMA-Z world-class shower enclosure. DreamLine® has the ultimate solution for your shower project.
| Model Number | Dimensions D X W x H | Suggested Base (Left-hand drain) | Suggested base (Right-hand drain) |
| SHEN-6234480 | 34 1/2" D x 48 3/8" W x 76" H | DLT-1036481 | DLT-1036482 |
| SHEN-6234600 | 34 1/2" D x 60 3/8" W x 76" H | DLT-1036601 | DLT-1036602 |
SHEN-6232480 | |||
| 32 1/2" D x 48 3/8" W x 76" H | DLT-1034481 | DLT-1034482 |
