Aqua Ultra
Hinged Tub Door
PRODUCT SPECIFICATION
- 48 in. W x 58 in. H
- Finished walls are required for accurate shower opening width measurement
- Frameless glass design
- Model consists of one hinged door and stationary side glass panel
- Anodized aluminum U shaped wall profile allows 1/4 in. out-of-plumb (vertical) adjustment
- Reversible for a right or left door opening installation (door has a convenient towel bar)
- Quality 5/16 in. (8mm) thick ANSI certified clear tempered glass
- Hardware available in chrome or brushed nickel finish
- Stationary panel: 23 11/16 in.
- Professional installation recommended
- Limited lifetime manufacturer warranty
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor

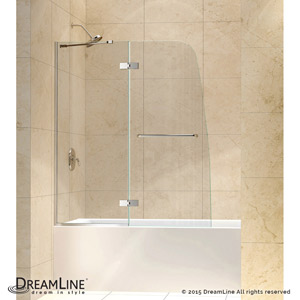

The AQUA Ultra hinged tub door from DreamLine® blends a fresh look with a sophisticated frameless design for an amazing value. The AQUA hinged tub door combines 5/16 in. thick ANSI certified clear tempered glass with a striking curved silhouette for a uniquely modern look. An innovative u-shaped wall profile provides a 1/4 in. out of plumb (vertical) adjustment for an easy installation. Add a touch of brilliance to your bathroom with the gracefully curved lines of the AQUA hinged tub door. DreamLine® has the ultimate solution for your shower project.
| Model Number | Door Type | Height | Width | Glass Type |
| SHDR-3445720 | Shower | 72" | 45" | Clear |
| SHDR-3448580 | Tub | 58" | 48" | Clear |
