Infinity-Z
Tub Door & Backwall Kit
PRODUCT SPECIFICATION
-
Items included: Infinity-Z Tub Door and QWALL-Tub Backwall Kit
- 1/4 in. (6 mm) clear or frosted tempered glass
- Chrome or Brushed Nickel hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 1 in. per side
- Anodized aluminum profiles and guide rails
- Convenient towel bar on the outside panel
- Aluminum top and bottom guide rails may be shortened by cutting up to 4 in.
- Reversible for right or left door opening installation
- Material: Tempered Glass, Aluminum
- Tempered glass ANSI certified
- Color: White
- Assembly required
- Durable acrylic/ABS construction
- Compatible with most rectangular shaped bathtubs
- Attractive tile pattern
- Includes 2 glass corner shelves
- Depth may be trimmed down from 32 in. to 28 in.
- Width may be trimmed down from 59 1/2 in. to 56 in.
- Height is 60 in.
- Tub is not included
- Designed to be installed against finished walls (not directly to studs)
- Limited lifetime manufacturer warranty
- Shower Backwalls: Limited 1 (one) year manufacturer warranty
Infinity-Z Tub Door:
QWALL-Tub Backwall Kit:
Product Warranty:

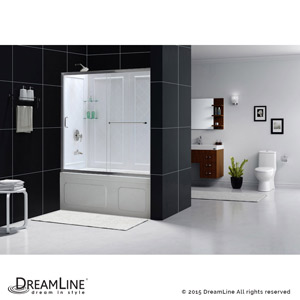

The INFINITY-Z™ tub door and Backwall Kit offers a beautiful solution for a bathroom remodeling project. The sliding tub door is paired with a stationary glass panel to provide a comfortably wide bath entry. The stationary panel of the INFINITY-Z sliding tub door is fitted with a convenient towel bar that doubles as a handle. The kit pairs the sliding tub door with versatile backwall panels made from durable Acrylic/ABS advanced materials. The tub wall panels have an attractive tile pattern and are easy to install with a trim-to-size fit. Transform your bath tub space with an efficient and cost effective kit from DreamLine.
for individual technical drawing| Kit Model |
Items included | ||||||
| Tub Door | Backwall | ||||||
| item# | Glass | Finish | item# | ||||
| DL-6992 | SHDR-0960580 | Clear (CL), Frosted (FR) |
Chrome (01), Brushed Nickel (04) |
SHBW-1360603 | |||
