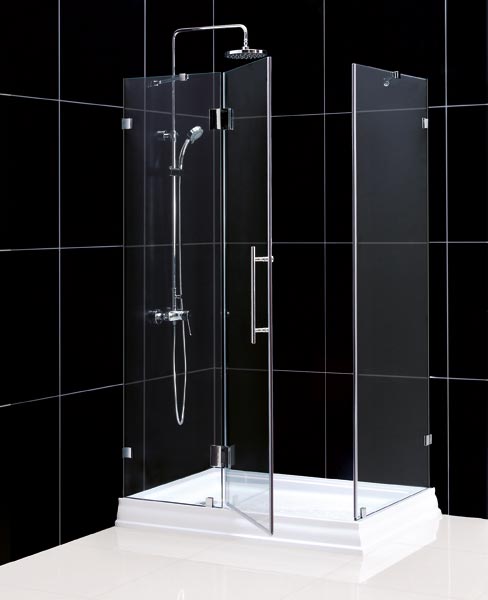

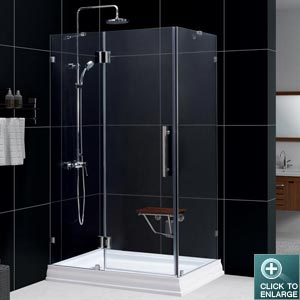

QUADLUX Shower Enclosure

Finish Options

They are all very different - round, rectangular, neo-angle, D-shaped – but all of the DreamLine™ shower enclosures share the same basic lineage. All of these shower enclosures are made of tempered glass combined with anodized aluminum profiles. Enclosure glass may be installed on custom tiled bases or may be combined with optional DreamLine™ shower bases. Available in a variety of sizes, shapes and finishes DreamLine™ shower enclosures are designed for installation against finished acrylic or tiled walls. Add a simple shower head or an advanced DreamLine™ Shower Column and create the Bathroom of Your Dreams™ with DreamLine™ shower enclosures.

Product Specifications

Hinged door with self-closing solid brass hinges and full length magnetic door latch
3/8" tempered clear glass
Frameless glass design with wall mounted brackets and support bars for stationary glass
Reversible for "Right" or "Left" door opening
Designed for corner installation against finished walls (has no adjustment for out-of-plumb walls)
Available in chrome and brushed nickel finish
Optional DreamLine™ fiberglass reinforced acrylic base

Model Number	Glass Thickness	Size, in. D x W x H	Matching Base
SHEN-13314510	3/8"	30 7/8 x 44 7/8 x 72 7/8	SHTR-1034481 (left-hand drain) SHTR-1034482 (right-hand drain)
SHEN-13343410	3/8"	33 3/4 x 33 3/4 x 72 7/8	SHTR-1036360

Quad Shower enclosures Collection Features Chart

Model	Model Number	Size, in. D x W x H	Glass	Hardware Type	Wall Connection Type
QUAD LUX	SHEN-13314510	30 7/8 x 44 7/8 x 72 7/8	3/8"	Self-closing Hinges	Wall-mounted brackets, Support Bars
QUAD LUX	SHEN-13343410	33 3/4 x 33 3/4 x 72 7/8	3/8"	Self-closing Hinges	Wall-mounted brackets, Support Bars
QUAD	SHEN-1031458	30 7/8 x 44 7/8 x 72 7/8	5/16"	Standard Hinges	Full Length Wall Profile, Top Glass Bar
PANORAMA	SHEN-1134348	34 x 34 x 76 3/4	5/16"	Pivot	Full Length Wall Profile
	SHEN-1131378	30 7/8 x 36 7/8 x 76 3/4
	SHEN-1131458	30 7/8 x 44 7/8 x 76 3/4
