Hinged Shower Enclosure

UnidoorLux
UnidoorLux
UnidoorLux
UnidoorLux
UnidoorLux
UnidoorLux
UnidoorLux
UnidoorLux

PRODUCT SPECIFICATION

  • Finished walls are required for accurate shower opening width measurement
  • 30-3/8 in. D x 30 in. W x 72 in. H
  • Hardware available in Chrome, Brushed Nickel or Oil Rubbed Bronze finish
  • Door walk-in: 28-1/2 in.
  • Return panel: 30 in.
  • This model has no width (horizontal) or out of plumb (vertical) adjustment
  • Frameless glass design
  • Model consists of single hinged door and one stationary return panel
  • Reversible for a right or left door opening
  • 3/8 in. (10mm) thick ANSI certified clear tempered glass
  • Solid brass glass bracket hardware and self-closing hinges (with a 5 degree offset)
  • Support bar (required) for fixed panel
  • Wall studs or other reinforcement behind finished walls required for hinge installation
  • Professional installation recommended
  • Optional SlimLine shower base sold separately


  • Limited lifetime manufacturer warranty
  • Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year


  • NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine SlimLine Shower Base dimensions are provided for rough opening measurements (against the studs)

    NOTE: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately

    Professional installation recommended

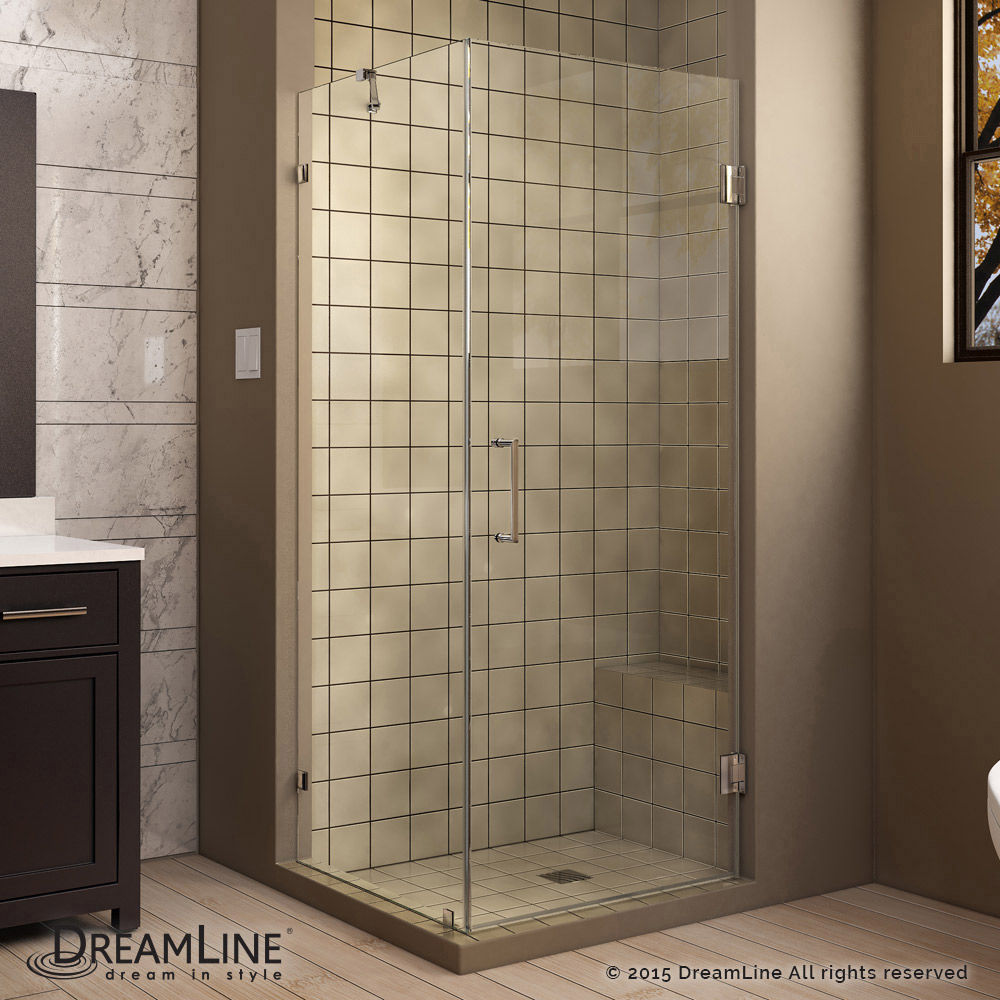

The UNIDOORLUX shower enclosure from DreamLine® is perfectly designed to accommodate today‚Äôs trends. It has a classic frameless design with three hardware finish options helping it enhance any bathroom style and affordable on any budget. The UNIDOORLUX shower enclosure combines premium 3/8 in. thick ANSI certified tempered glass with a sleek frameless design for the look of custom glass at an unparalleled value. With clean lines, modern accents and an upscale look, the UNIDOORLUX shower enclosure gives a touch of timeless style to any bathroom space. DreamLine® has the ultimate solution for your shower project.

Model Number Glass Thickness Size, in.
D x W x H
Matching Base
SHEN-2330300 3/8" 30" x 30-3/8" x 72" DLT-1032320
